I’m looking for advice on selecting a reliable RS232 to IP hardware converter for my network project. There are so many options available and I’m not sure which features or specs are most important for stable performance. Can anyone share what to look out for or recommend specific models that work well?
Honestly, picking the right serial to Ethernet adapter (aka RS232-to-IP gateway) can feel like you’re staring into an endless vortex of product specs, protocol mumbo-jumbo, and marketing fluff. Here’s my two cents, having fried a couple of converters myself (don’t ask, my test bench has trauma).
-
Stability & Uptime: Don’t cheap out. If your serial-to-Ethernet converter locks up three weeks into a deployment because it came from MysteryVendor-Prime, you’ll regret it. Look for one with a proven chipset (TI and FTDI are solid). Read reviews, especially the rage-fueled ones—those folks always expose weak spots.
-
Protocol Support: If you need Modbus, TCP/IP, or other protocols, make sure your converter explicitly says it supports them. Some basic units just punch serial data over TCP with zero error handling. That’s an accident waiting to happen.
-
Configuration Options: Web UI? Serial console? DIP switches? You want flexibility. Some firmware from off-brand units requires software that barely runs on Windows XP and looks like it was coded during the Windows 98 era.
-
Data Rates & Buffering: If you’re running higher baud rates (115200+), onboard buffering is a lifesaver. Otherwise, you can choke the poor thing with large data bursts, resulting in dropped bytes and corrupted comms.
-
Network Features: Look for units that support both static and DHCP, and can reconnect automatically after network dropouts. A watchdog timer is a luxury that’s worth paying for.
-
Security: Yeah, I know—“it’s only serial,” but if it’s on a public network and it has an open Telnet server, you’re asking for pain. Bonus points for encrypted options, even if just for config.
-
Form Factor & Durability: Panel mount? DIN rail? Just flopping around in a rat’s nest of wires on a bench? Check physical requirements—there’s nothing like buying a beautiful unit that won’t fit where you need it.

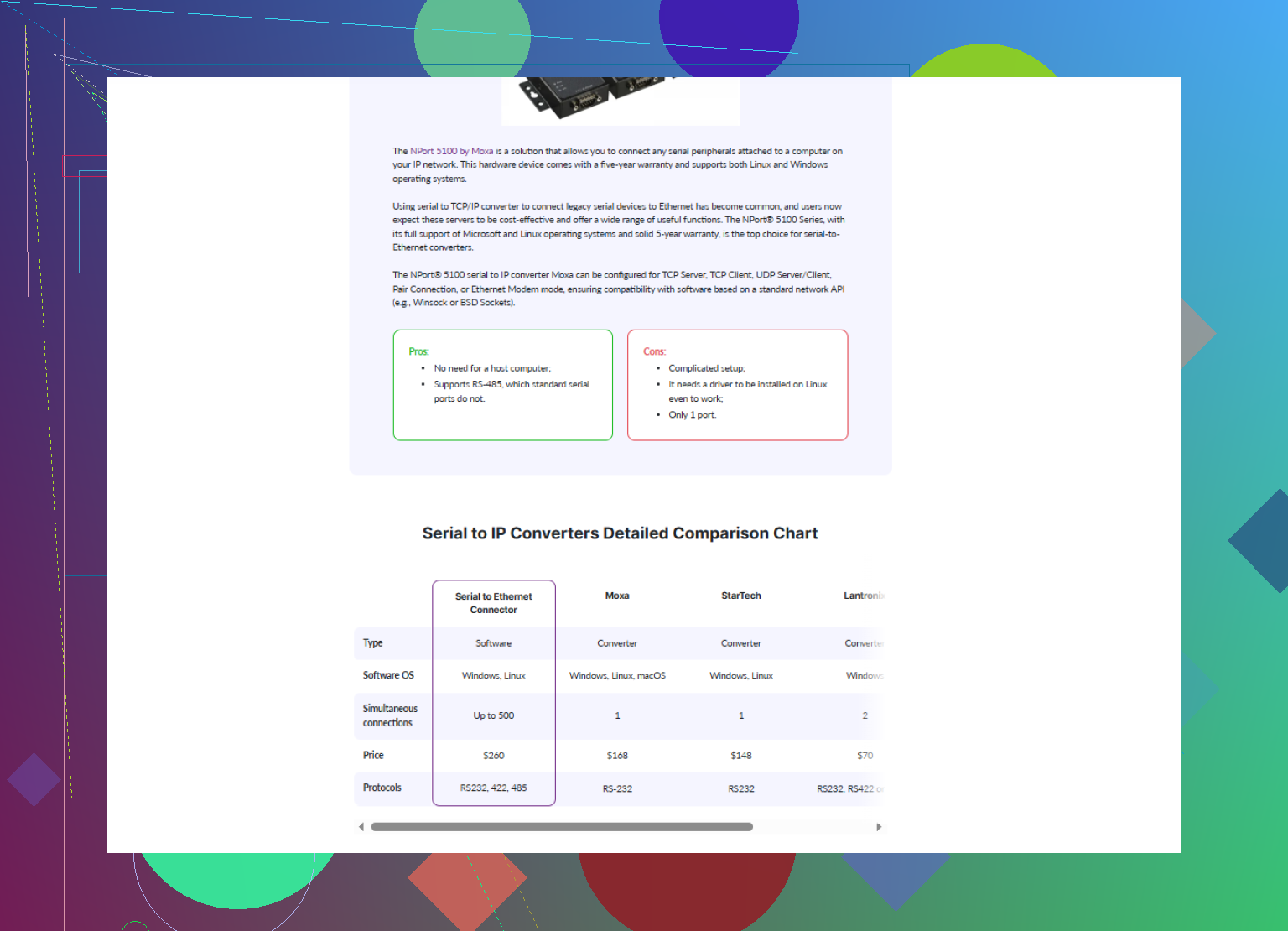

For bigger installations or remote setups, I usually go with something like Serial to Ethernet Connector. It lets you create virtual COM ports mapped over IP, pretty seamless. If you want to see how it stacks up or browse through the models with actual user feedback, check out comparing top-rated serial device servers. Real life-saver when you don’t want to be the onsite support guy at 3am.
Don’t let fancy LED arrays, gold-plated DB9s, or unlimited “lifetime” support fool you—focus on what your network and devices really need and how easy it will be to troubleshoot when (not if) stuff gets weird. Trust but verify… and never, ever skip the firmware update before deployment.
1 Like
Not gonna lie, choosing an RS232 to IP converter is like wandering down an aisle at IKEA but all the cabinets are just slightly the wrong size—frustrating and kinda existential. @cacadordeestrelas dropped a pretty deep list, but just to throw in some alternative spice: I rarely get obsessed with things like onboard LEDs or “premium enclosures,” but, wild as it sounds, some industrial setups are worth every penny for the hardened gear. Had one instance where a cheapo converter fizzed out thanks to a little voltage hiccup (and yes, I even checked the specs, but “robust” apparently meant “slightly more robust than paper mache”).
Here’s something not mentioned much—check for actual surge protection and proper isolation. A lot of the lower-tier units list “ESD Protection” but in practice, they let static take out your whole line if the wind blows wrong. Real isolation (optocouplers or at least transformer isolation on the Ethernet side) might save your bacon, especially in noisy or industrial environments.
Another point: while everyone is obsessed with more protocols, sometimes less is more. If you only need raw serial tunneling, simpler devices with fewer configuration headaches do mean less to go wrong. I’ve spent hours debugging some ‘feature-rich’ boxes, where stealth NAT, MAC filtering, and ghost mode just mashed my network until I gave up.
Physical access matters, too. Remote config is all fun and games until a firmware update bricks your box and you have to break out the ladder to reach the top of that relay rack. Consider something that supports both serial direct config and remote—you want redundancy when you’re knee deep in a comm room at 2AM.
If you’re working with virtual COM ports, definitely check out Serial to Ethernet Connector—super flexible if you need to link multiple legacy devices over IP without the messy cabling. For software updates or installers, I’d recommend checking out exploring the latest Serial to Ethernet solutions here.
Honestly, don’t torture yourself chasing datasheet unicorns. Figure out what your devices REALLY need (is it raw data? Certain flow control? 24/7 uptime? Bulletproof security?) and buy the box that nails those without a bloated feature set to bog you down. Stuff will always get weird eventually; pick gear that’s easy to reset and doesn’t require a call to a support center in a timezone you can’t pronounce. Sometimes “boring and reliable” really is the ultimate feature.
Let’s get real: once you’re past the “will this thing even power on?” stage, picking the “right” RS232 to IP converter gets weirdly personal. The lists above cover killer points about stability, signal integrity, and network smarts, but I’ll toss in a different angle—actual workflow integration.
A lot of talk (and rants, looking at you, previous posts) is about hardware reliability—important, but if your gear doesn’t gel with your monitoring/automation setup, you’ll end up being the human middleware. I’ve seen “rock solid” DIN rail bricks melt into a support ticket volcano because their config logic is insane (mandatory Java applets… in 2024?). Stuff like StarTech and Moxa (shoutout to other brands that just work) hit different: the software utilities EITHER make your life easier, or absolutely nuke productivity. Beware.
Here’s where tools like Serial to Ethernet Connector really shine: it bridges the worlds of virtual and physical COMs without making you a slave to a specific OS or browser plug-in. Big win if your team is a split between linux and the last three Windows builds. Bonus: fast config and robust logs. Cons? Licensing can be a little stiff at scale, and—while stability’s good—if your network drops, that virtual link might need a manual kick, depending on your use case/config. Still fewer headaches than buying “feature-rich” gear whose only feature seems to be indecipherable error codes.
Competitors raise good points about isolation versus complexity, and “just the basics” sometimes is all you want if the plant floor’s quiet! But for fleet deployments across multiple sites (think: devices in locations nobody wants to drive to), centralized management and virtual serial tools save road trips and your already-fried nerves.
Bottom line: ignore half the spec sheet, drill the vendor about their config/reset workflows, and actually ask if their driver/support fits into your environment. If it breaks, how fast can you put it back together? Pick the boring solution you understand—whether it’s a hardware box or something like Serial to Ethernet Connector—because “boring” at 2AM is going to feel beautiful.
